Desktop Mixer Amplifier

This multi-zone mixer amplifier is designed for flexible and reliable public address and background music systems. It features four microphone input channels with individual volume controls, a selectable source input, and a master volume control for precise audio management. A 6-zone speaker selector with stepped attenuation allows independent zone control. Equipped with talkover (VOX), phantom power, chime functions, and emergency mute capability, it ensures clear announcements and system safety. Supporting balanced mic inputs, auxiliary sources, remote microphone connection, and multiple speaker output options (4Ω, 70V, 100V), the amplifier also includes comprehensive protection circuits, convection cooling, and optional rack-mount installation.

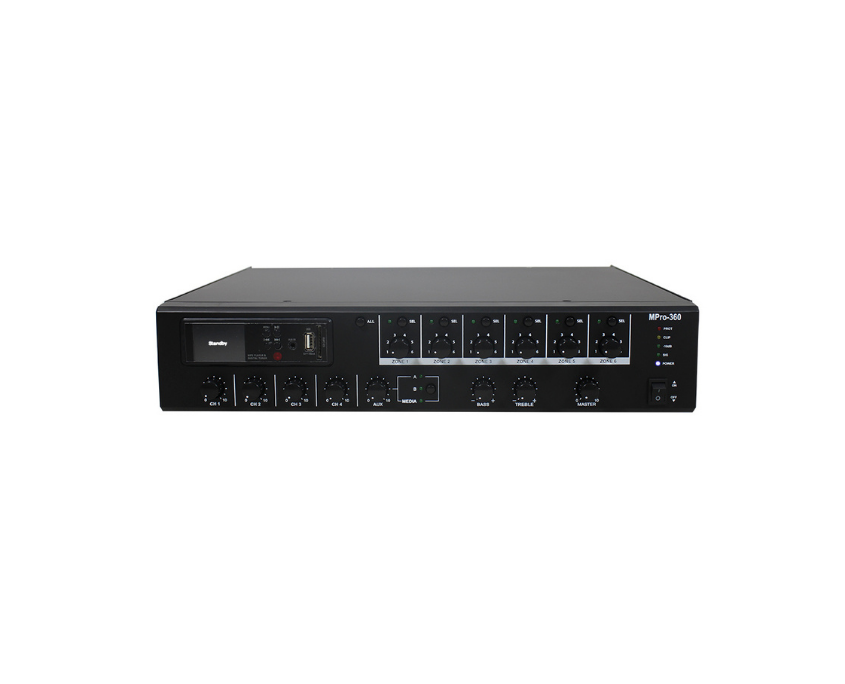

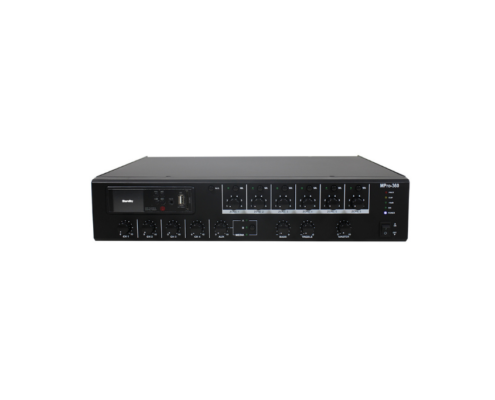

Front : 4 Input Channel Volume Control and 1 selectable source input Volume control,
Master Volume Control, 6 Zone Speaker Selector with 6 step attenuator.

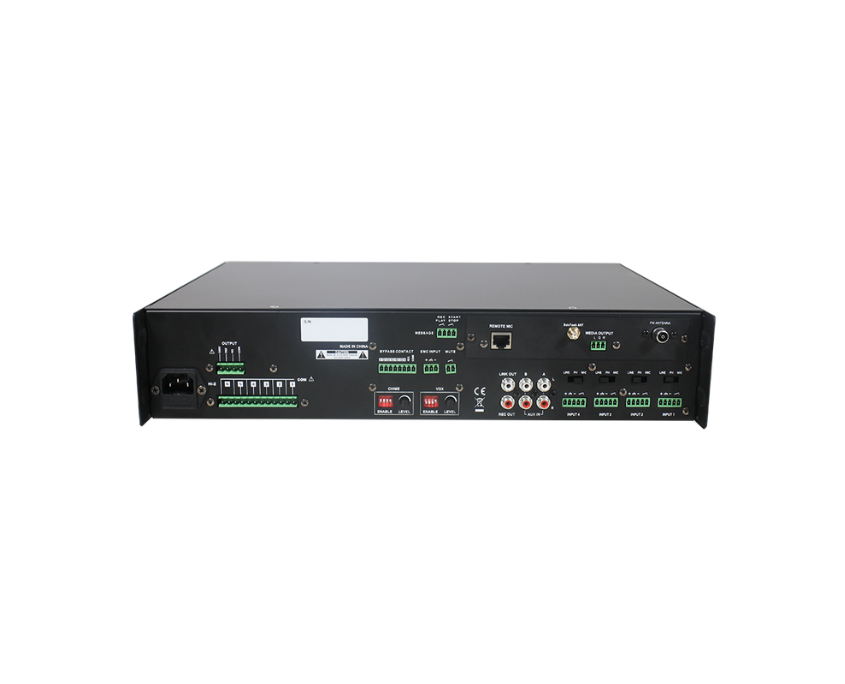

Rear : Talkover Switch ( VOX ) & Phantom Power Switch for Channel 1-4. Chime enable with volume control.
Bypass contact input & system mute.
Connectors
Input : Channel 1 – 4 : Electronically Balanced with chime switch.
Aux : Dual RCA.
Remote Mic : Rj45.
Emergency Alarm input : Euro bolck.
Output : Speaker Output : Euro Bock . Attenuated and Switched 6 CH, Direct Output 4Ω, 70V, 100V.
REC Out & Link out : RCA.
Contact : Ext. Chime : Euro block.
MUTE : Euro block.
Media player module : MPlayer A / MPlayer B / MPlayer C.
Indicators : SIG, -10dB, CLIP & Protect. Zone selector.
Protection : Output Current Limiting, Thermal Protection & DC Offset Protection.
Cooling : Convection Cooling.
Option : Rack Mount Kit.

Product factsheet: Download
